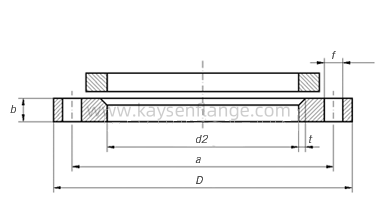

UNl Loose Flange
UNI 6088 loose flange PN6
Standard: UNI
Flange type: Loose flange
Size range: DN10-DN1200
Pressure: PN6
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: UNI
Flange type: Loose flange
Size range: DN10-DN1200
Pressure class: PN6
Face type: Flat Face(FF),Raised Face(RF),Ring Joint(RJT)
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: UNI
Flange type: Loose flange
Size range: DN10-DN1200
Pressure class: PN6
Material : Stainless steel , Alloy Steel , Carbon Steel
|
DN |
TUBO |
Flange Data |
Screws |
Kg |
|||||||
|
DIN |
SO |
a |
D |
b |
d2 |
f |
|
No |
|||
|
15 |
|
21.3 |
55 |
80 |
12 |
25 |
11 |
3 |
4 |
M10 |
0.5 |
|
20 |
|
26.9 |
65 |
90 |
14 |
31 |
11 |
4 |
4 |
M10 |
0.6 |
|
25 |
30 |
33.7 |
75 |
100 |
14 |
38 |
11 |
|
4 |
M10 |
0.6 |
|
32 |
38 |
42.4 |
90 |
120 |
16 |
46 |
14 |
5 |
4 |
M12 |
1 |
|
40 |
44.5 |
48.3 |
100 |
130 |
16 |
53 |
14 |
5 |
4 |
M12 |
1.5 |
|
50 |
57 |
60.3 |
110 |
140 |
16 |
65 |
14 |
5 |
4 |
M12 |
1.5 |
|
65 |
76.1 |
130 |
160 |
16 |
81 |
14 |
6 |
4 |
M12 |
2 |
|
|
80 |
88.9 |
150 |
190 |
18 |
94 |
18 |
6 |
4 |
M16 |
3 |
|
|
100 |
108 |
114.3 |
170 |
210 |
18 |
120 |
18 |
6 |
4 |
M16 |
3 |
|
125 |
133 |
139.7 |
200 |
240 |
20 |
145 |
18 |
6 |
8 |
M16 |
4 |
|
150 |
159 |
168.3 |
225 |
265 |
20 |
174 |
18 |
6 |
8 |
M16 |
4.5 |
|
200 |
219.1 |
280 |
320 |
22 |
22 |
18 |
6 |
8 |
M16 |
6.5 |
|
|
250 |
267 |
273 |
335 |
375 |
24 |
281 |
18 |
8 |
12 |
M16 |
8.5 |
|
300 |
323.9 |
395 |
440 |
24 |
333 |
22 |
8 |
12 |
M20 |
11.5 |
|
|
350 |
368 |
355.6 |
445 |
490 |
26 |
365 |
22 |
8 |
12 |
M20 |
16 |
|
400 |
419 |
406.4 |
495 |
540 |
28 |
416 |
22 |
8 |
16 |
M20 |
19 |
|
450 |
457.2 |
550 |
595 |
30 |
467 |
22 |
8 |
16 |
M20 |
23.5 |
|
|
500 |
508 |
600 |
645 |
30 |
519 |
22 |
8 |
20 |
M20 |
25.5 |
|
|
600 |
609.6 |
705 |
755 |
32 |
622 |
26 |
8 |
20 |
M24 |
33.5 |
|
