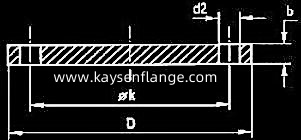

VSM 18703 Flange Blind
|
Nominal diameter |
Pressure / Bar |
Thickness [mm] |
Diameter hole [mm] |
Diameter circle [mm] |
Number of holes |
Flange diameter |
|
25 |
10-16 |
14 |
14 |
85 |
4 |
115 |
|
40 |
6 |
14 |
14 |
100 |
4 |
130 |
|
50 |
6 |
14 |
14 |
110 |
4 |
140 |
|
32 |
10-16 |
16 |
18 |
100 |
4 |
140 |
|
40 |
10-16 |
16 |
18 |
110 |
4 |
150 |
|
65 |
6 |
14 |
14 |
130 |
4 |
160 |
|
50 |
10-16 |
18 |
18 |
125 |
4 |
165 |
|
65 |
10-16 |
18 |
18 |
145 |
4 |
185 |
|
80 |
6 |
16 |
18 |
150 |
4 |
190 |
|
80 |
16 |
20 |
18 |
160 |
8 |
200 |
|
100 |
6 |
16 |
18 |
170 |
4 |
210 |
|
100 |
10-16 |
22 |
18 |
180 |
8 |
220 |
|
125 |
6 |
18 |
18 |
200 |
8 |
240 |
|
125 |
10-16 |
24 |
18 |
210 |
8 |
250 |
|
150 |
6 |
20 |
18 |
225 |
8 |
265 |
|
150 |
10-16 |
24 |
22 |
240 |
8 |
285 |
|
200 |
16 |
26 |
22 |
295 |
12 |
340 |
|
200 |
10 |
26 |
22 |
295 |
8 |
340 |
